Edit drawing

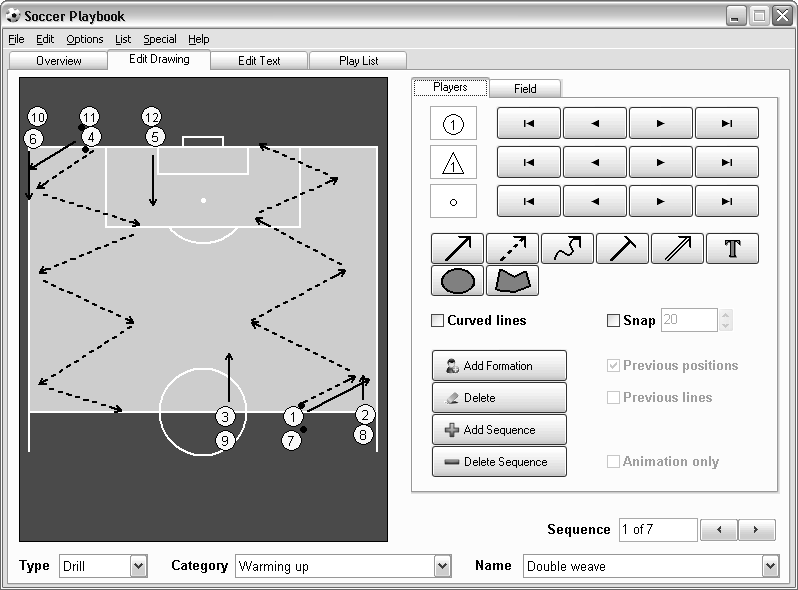

With the edit drawing tab selected a sketch of the current drill can be edited.

The players, balls and coaches can be selected and dragged and dropped over the field, with the main mouse button.

To select multiple players and lines, lines hold down the CTRL button while clicking on the players/lines.

You can also select an area of the field by holding down the shift key and using the main mouse button to resize a selection rectangle.

Finally all players/lines can be selected by choosing Edit - Select All or by pressing CTRL-A.

When a player is selected with the other mouse button, a player edit window is shown and depending on the player the color, text or rotation can be altered.

The movement of players and balls can be drawn with the 7 different arrows. The ellipse and polygon can be used to give a part of the field a different color. The text button can be used to add text to a sketch.

To make curved lines check the curve checkbox, to align players and lines check the snap function and select the size of an invisible snap grid.

See the symbols for an explanation of the different graphics.

If the previous position checkbox is checked the players of the previous sequence are drawn in light gray.

With the previous lines checkbox you can show or hide the lines of a previous sequence, if there are no lines in the previous sequence the sequences before that will be checked for lines.

If the Animation only checkbox is checked the current sequence will not be printed.

The Add Formation button, will show a number of predefined formations which can be used in the current sketch.

The Delete button will delete selected players or movement lines.

The Add Sequence button can be used to insert a new sequence after the current sequence. The maximum number of sequences per play is 75.

And the Delete Sequence button can be used to delete the current sequence.

Clicking on the Field tab will enable you to choose a different field, browsing through the different fields is done by pressing the navigation buttons. By pressing the Ok button the field in the drawing is replaced by the selected.

The type box can be used to switch between plays, drills, templates and formations.

If the play Type is Template a "New Play" button is visible so you can create a new play from the current template.

With the category box categories within the play or drill section can be selected.

With the play name box the different plays within the current category can be selected.

And finally with the sequence buttons you can navigate through the current play.
